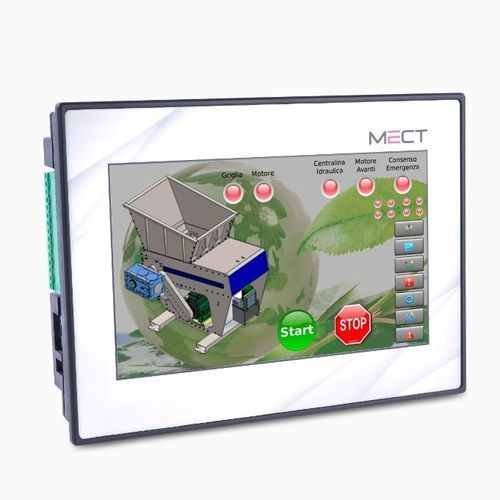

Operator terminal with touch screen TP1070

panel-mount800 x 480ARM9

Based on an ARM9 architecture, the TP1070 is an PLC operator panel with touch-screen 7" TFT monitor which integrates the QT graphics libraries. "MECT SUITE" softwares are OpenSource. It is available the Remote Connection and Monitoring service sMily, essential for Industry 4.0, to remotely control your device, from anywhere at anytime. The operator panel TP1070 can also interface to a PLC without monitor via Modbus RTU protocol on RS485 or via CAN port. The Ethernet interface allows remote management of the device and the USB host port allows the TP1070 to update the software directly on site without the use of a PC. SOFTWARE To configure your PLC operator panel TP1070 is available the "MECT SUITE" software. "MECT SUITE" contains the software to configure the system and to create the PLC and HMI graphics applications: Qt Creator: Generate graphics HMI application (graphics pages); Generation and definition of the system variables; Configuration of the communication parameters; Operator Panel preliminary setting; Easy insertion of elements associated to PLC variables; Ready pages for recording / logging; Use, if necessary, Qt / C++ code; HMI application debug. ATCMControl: Generation PLC application (in 5 IEC 61131-3 languages); In addition to several libraries are available those of PID and Self-tuning; PLC application debug. VERTICAL VERSION AVAILABLE.
