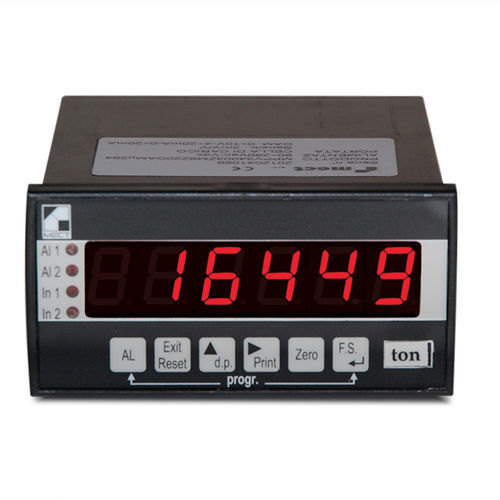

Cell counter MPPV340 M6

digitalfor strain gaugesanalog output

4½ digit display in a 48x96 box for strain gauge (load cell) input. Optional 4 relay or 8 static alarms output and analogue and serial output. The MPPV340 M6 model is an instrument with 16 bit A/D converter for strain gauge transducer. The available measuring scales are listed in the "Features" section. The instrument has the following functions: 4½ digit indicator (± 19999) reading of any input value inside the requested range minimum or maximum peak measuring reading at 30 conv/sec "filtering" process for instrument readings zeroing of automatic reading function The MPPV340 M6 instruments can be ordered with the following options: normal or optoisolated bidirectional serial output or monodirectional version for printer 8 static alarm outputs or 4 relay alarm outputs for normal working or window alarms completely programmable for value, hysteresis and delay Normal or optoisolated analogue output (4÷20mA or 0÷20mA or 0÷10V). transducer power output stabilized at 10Vdc. Readings: 4½ digit Accuracy better than: 0,2% Thermal stability: 50 ppm/°C Transducer power supply: 10Vdc /90mA Analogue outputs features: Outputs: 4÷20mA - 0÷20mA - 0÷10V Max load for current output: 400Ω Min. load for voltage output: 1KΩ Resolution: 16 bit Exchange relay output: 5A / 250Vac Static outputs NPN-PNP: 50mA/30Vdc Power supply: 90÷260Vac/Vdc, 12÷30Vac/Vdc Power absorption: 6W Max working temperature: 50 °C Digits height : 13mm Dimensions: 48x96 (120 mm. Depth) Mounting plate: 44.5mm (h) x 92.5 mm (l) Weight: 350 gr. Mounting: by bolts
