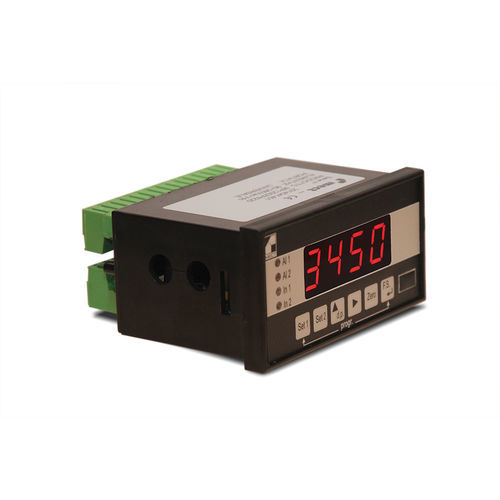

4 digit display in a 48x96 box for 4÷20mA, 0÷20mA, 0÷10V input and thermocouples J, K, S, and Pt100. Optional 3 relay alarm outputs, analogue output and serial outputs.
The MP1200 P6 model is an instrument with a dual slope converter to interface transducers (2 or 3 wires), thermocouplings and thermoresistors or voltmeter/ammeter amplifiers.
The scales available are listed in the "Features" section.
The instrument has the following functions:
4 digit indicator (-1999÷9999)
reading of any input value inside the requested range
zeroing of automatic reading function
reading at 4 conv/sec (no programmed filter)
fixed zero (visualization from -1990 to 9990)
possibility of read out with 20 steps linearization
The MP1200 P6 instruments can be ordered with the following options:
2 relay alarm outputs (three if 220V power supply) programmable for value, hysteresis and delay
analogue outputs (4÷20mA or 0÷20mA or 0÷10V)
Features
Readings: 4 digits
Accuracy better than: 0,5%
Thermal stability: 50 ppm/°C
Transducer power supply* : 16V/20mA (unregulated)
Inputs: TC: J, K, S; RTD PT100; 0÷20mA; 4÷20mA; 0÷10V
Analogue outputs features:
Outputs: 4÷20mA - 0÷20mA - 0÷10V
Max load for current output: 400Ω
Min. load for voltage output: 1KΩ
Resolution: 12 bit
Exchange relay output: 5A / 250Vac
Power supply: 90÷260 Vac/Vdc, 25Vac, Vcc o Vpt (12[divid]30Vdc)
Power absorption: 1,5 W
Max working temperature: 50 °C
Digits height: 13mm
Dimensions: 48x96 (75 mm. Depth)
Mounting plate: 44.5mm (h) x 92.5 mm (l)
Weight: 250 gr.
Mounting: by bolts
