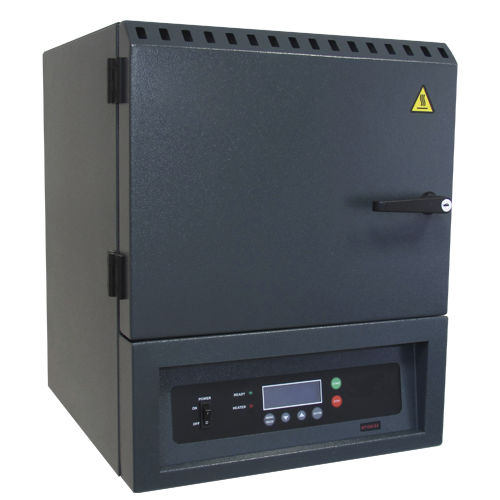

Chamber furnace MD13 series

preheatingmeltingashing

Medline’s MD1305, 5 Litre Chamber Furnace provide a strong level of versatility without compromising quality, safety or reliability. Furnaces can be used in quality control tests, ashing, heat treatment, preheating, melting, metallurgical research and sample production. Our products have been produced for heavy duty conditions. • Chamber walls made up of insulating fire bricks with protection against mechanical abrasion and thermal ageing and deformation • Hidden heaters in two sides and on top (housed in quartz tubes) • Tight door closing mechanism. Homogeneous temperature gradient in the chamber thanks to similar heat loss in every direction • Optimal insulation thickness to reduce the temperature of the outer surface • No contact between outer shell and chamber for low surface temperature • Standard chimney with fan • Side-hinged door Volume (L): 5 Continuous Working Temperature (°C): 1250 Max. Temperature (°C): 1300 Dimensions; W x D x H (mm) Chamber: 150 x 150 x 230 External: 400 x 590 x 550 Weight (Kg): 42
