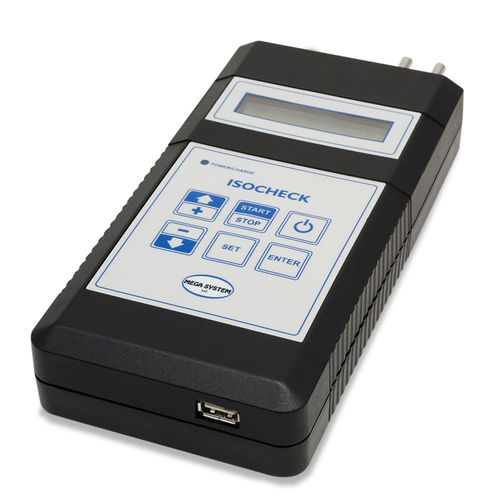

Pressure measuring instrument ISOCHECK SRB

flowspeedthermocouple

The automatic ISOCHECK processor, through an “L” or “S” pitot tube with a thermocouple, allows speed and flow measurements in compliance with UNI EN ISO 16911-1. The instrument is equipped with independent sensors for pressure measurement (DIFFERENTIAL, STATIC and BAROMETRIC) in order to meet the “precision” required by the normative. Connected to a LIFETEK XP-R it can perform automatic isokinetic samplings with continual update of the intake flow as the fume speed conditions vary. measured parameters: temperature, differential pressure, static pressure, barometric pressure calculations: speed, flow, normalized flow, isokinetic flow and nozzle flow data logger function power supply : Input 230 Vac – 50 Hz / and internal batteries (over 8 hours) dimensions: 200 x 100 x 40 mm weight: 550 g
