Ribbed belt PPJ

timingrubbermachine

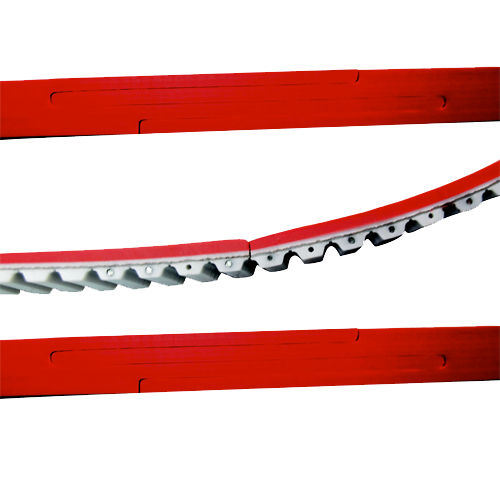

Our Progressive Pin Joint (PPJ) system provides a simple, reliable method of placing a timing belt on an application without the need to tear apart the conveyor or join the belt endless on line. PPJ is a perfect option for parallel path belts where the load being moved is spread across several belts. Installation and replacement of belts is fast, simple and cost saving. Features Reduced load capacity, when compared to standard, joined belts The back of the belts are virtually flat Designed for conveying applications, max suggested speed is 120 m/min Pin materials according to AISI302 Megalinear urethane timing belts produced with NFT, NFB, AVAFC, APL, Fishbone, Ribbed and Supergrip can be joined with PPJ Minimum splice length of 700 mm
