Timing belt HYBRID PLUS

polyurethaneconveyor beltfor conveyor rollers

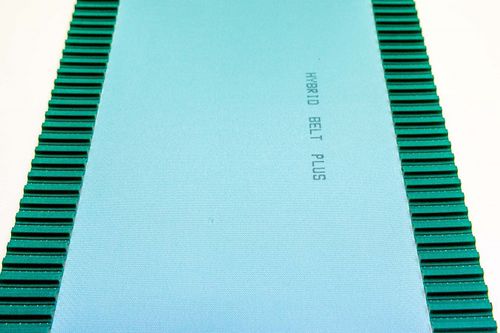

HYBRID BELT PLUS The HYBRID BELT PLUS is part of the HYBRID BELTS SERIES: innovative belts with unique features within the market, combining successfully the positive features of timing belts with and conveyor belts. The main feature of HYBRID BELT PLUS is the application of two or more timing belts at the edges of a polyurethane conveyor belt or in central position. Compatible for fabrication with other thermoplastic materials. Many profiles and coatings are possible to suit specific applications. Features Driven speed up to 550 mt/min Greater productivity Long belt life, because the conveyor belt works without traction loads Cost reduction Less energy absorption (about 30%) Energy saving Extremely customization, covering and special reworking Taylor made MAIN COMPONENTS CONVEYOR BELT: PUCON – Thermoplastic Polyurethane; SILCON - Silicone MATERIAL: PU / SIL TYPE OF FABRIC: PET, rigid TIMING BELT: MEGALINEAR - Thermoplastic polyurethane with kevlar cords, steel cords or without cords and nylon coating of the teeth MECHANICAL AND CHEMICAL PROPERTIES Smooth starting and running More compact dimension of pulleys Compact drive, more flexibility HYBRID BELT PLUS working temperature: -20° / +80°
