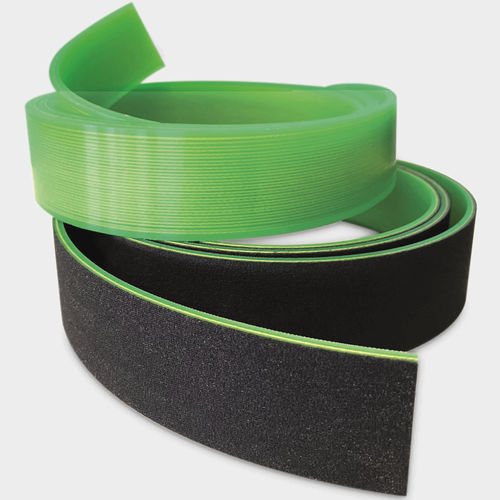

Open end belt MEGALINEAR MLR-45

synchronouspolyurethanehandling

MEGALINEAR LIVE ROLLER END-USER 45MM THE NEW MEGADYNE PERFORMANCE BELT DESIGNED TO MEET THE NEEDS OF LIVE ROLLERS IN AUTOMATED WAREHOUSE SYSTEMS. It is manufactured from polyurethane 85 ShA, in standard yellow with black anti-static fabric on the bottom. Features: • high strength aramid tensile members • yellow finish for easy wear detection 0,3 [mm] 4.7 ± 0.3 4,5 45 ± 0.5 45 0,5 [mm] MIN DRIVER DIAMETER [mm] MLRE - 45 • high friction surface • black anti-static fabric to reduce dust abrasion and lower friction Characteristics: - Standard Width: 45 mm - Standard Length: 200 m open-end rolls - Thickness: 4.7 mm Max traction load: 4,025 N - Breaking strength: 16,100 N Working temperature: -13 / +176 °F (-25 / +80 °C) MECHANICAL AND CHEMICAL PROPERTIES Performance • high grip and less slip on the rollers • anti-static fabric to reduce wear and lower friction • flexible belt construction • improved wear and abrasion resistance • designed to resist ozone and temperature degradation High efficiency • stable tension over time • smooth running Less maintenance • easy installation • fast and easy replacement on-site • easily spliced using common splicing equipment Energy saving • low energy consumption due to high flexibility • optimized CoF improves energy efficiency Cost saving • easily maintained • energy-efficient design
