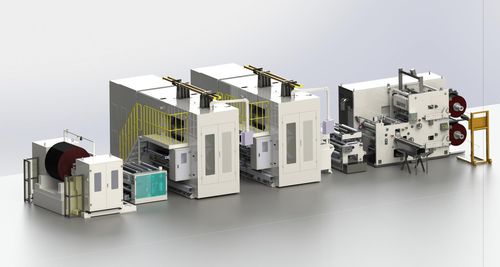

Lamination press MA-02

rollerautomaticfor battery pole

4. The main engine supporting unwinding, winding, front expansion, back extension, front stretching, rear stretching, cutting edge dust removal, dust suction, double-row imported scraper clearing device, scale control belt platform, vibration damping mechanism can realize continuous rolling production. The main machine is equipped with a convenient roll disassembly device, which is convenient for more convenient and quick disassembly and replacement of rolls during equipment maintenance. 5. The two rolls are arranged horizontally up and down, the "whole" rolling plate archway structure is equipped with special bearings for high-precision rolling mills and equipped with bearing clearance elimination devices. Ensure high rigidity and high stability of rolling mill. 6. Optional auxiliary mechanisms for continuous rolling line include S roll preheating device, thickness measurement device, CCD detection, automatic labeling device, and arc roll technology. 7. Roll surface treatment: chrome plating, spraying tungsten carbide, etc. (User Optional) 8. High-end optional auxiliary machine: IHA tabs induction heating device, double station automatic roll change, automatic tape, "several" shape unwinding and baking, bending and roll mechanism, preload mechanism, automatic winding and unwinding roll integration machine. Yield≥ 99.6% Yield ≥99%
