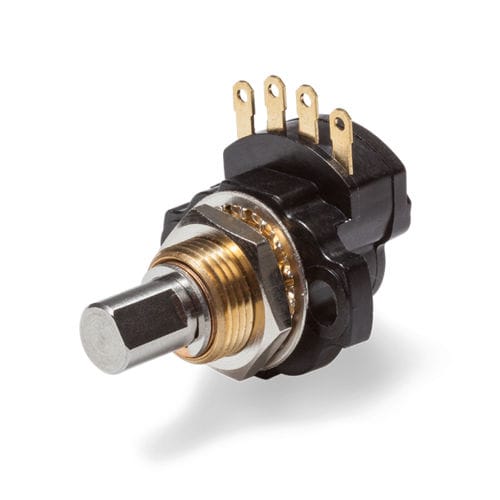

Absolute rotary encoder MP1618

Hall effectsolid-shaftsingle-turn

Magnetic rotary encoder (Hall effect) MP1618 90° rotary encoder with low current consumption, low installation depth and mounting options in Ø22 mm housing Wide operating temperature range -40…+105 °C Also, available with redundant electronics Less power consumption ≤ 7 mA (single), ≤ 14 mA (redundant Bushing or flange mounting Resolution nearly infinite Effective electrical angle of rotation ±45° (=90°) The MP1618 is particularly suitable in low-power applications and requirements for a large operating temperature range. The sensor works completely contactless (“real” hall-effect with nearly infinite resolution) and ensures best lifespan. The option with a redundant electronic makes it also from interest for applications with increased operational safety requirements. The installation via flange or bushing makes this rotary encoder compatible with a variety of installation situations.
