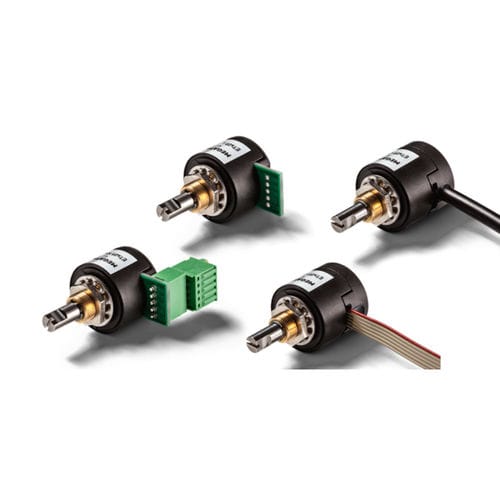

Absolute rotary encoder ETAM25

Hall effectsolid-shaftnon-contact

The ETAM25 rotary angle encoder with analogue signal interface fits perfect to applications where a comfortable man-machine interface with increased torque and a pleasant haptic is required. Thanks to the contactless measurement principle ETAM25 ensures always a save and precise manual input especially under harsh conditions. The ETAM25 with Ø6 mm or Ø6.35 mm shaft diameter fits perfect to applications with manual settings of parameters under harsh everyday conditions. The rotation angle sensor detects dependable the manual input of values in control panels. The panel encoder, based on the Hall technology, is mostly wear-free. ETAM25 offers a high durability and is equipped with mechanical start and end stop. As mechanical rotation angle it can be chosen ex works between 90°, 180°, 270° or 320°. The hardened and tempered sleeve bearing without detent gives the panel encoder a pleasant haptic appearance. ETAM25 also prevents unintentional adjustment in most applications thanks to its increased torque. A further advantage is the modular concept of the ETAM25, which is based on the possibility of a wide range selection of options like the operating voltages as well as voltage or current outputs and electrical connections.
