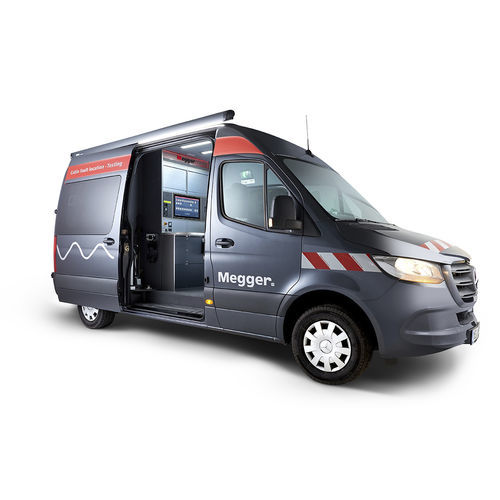

Fault location system CENTRIX EVOLUTION

11 reasons why the Centrix Evolution is unique Centrix Evolution sets the standards for user comfort and performance: 1. For all operating modes and system functions, without exception, a centrally-controlled, fully automated, fully integrated test system 2. Easy and convenient operation via the 21.5’’ control unit providing a multi-touch industrial-grade panel or, alternatively, via rotary knob (JogDial) 3. For inexperienced users, an automated sequence (“the workflow”) with step-by-step instructions guiding through the fault location process03 4. Highest safety standards by means of a powerful discharge unit with 32 kJ, as well as by monitoring the station earth (F-U) and the earth connections on the HV return (F-Ohm) 5. Teleflex® RDR – the best cable radar (time domain reflectometry) in the market 6. State-of-the-art resonance burning technology and continuous prelocation method ARM® Live Burning 7. Surge energy (thumping) up to 4000 Joules 8. Monitored withstand testing with near-line-frequency PD measurement (Slope technology), diagnostic PD testing with damped AC (DAC technology) 9. Latest, most innovative implementation of ARM prelocation via Multishot with 32 fault traces, Best Picture algorithm, and inductive ARM filter 10. Linux-based operation system – highest system stability, blackstart capability, and excellent cyber security 11. Connectivity – remote access and remote control of important system functions for the convenient location of cable faults with minimal stress on the cable under test
