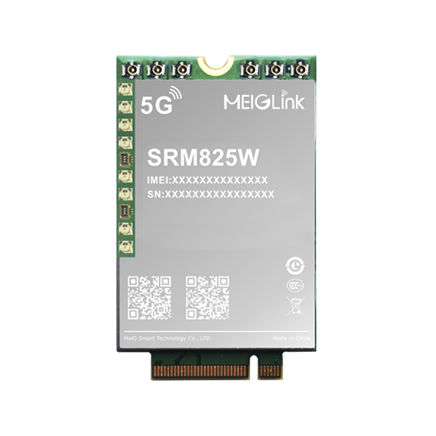

Data transmission wireless module SRM825W

MeiG Smart SRM825W module is a 5G NR Sub-6GHz and mm wave module specially designed for the IoT and eMBB applications. it adopts M.2 package mode, integrates Qualcomm's latest generation of SDX55 baseband chip, conforms to 3GPP Release 15 protocol standard, and can support SA and NSA network deployment. According to different target areas, different sub-models are designed, which can support 5G NR Sub-6GHz and mmwave networks. Meanwhile, its backwards compatibility supports 3G/4G network standards, which can cover 5G commercial network bands of major regions and carriers in the world. At the same time, the SRM825W module supports Qualcomm I Z a t™G e n 9 technology, with built-in multi-constellation high-precision GNSS receiver, supports GPS/GLONASS/beidou/Galileo/qzss, which can provide fast and accurate positioning services. SRM825W is packaged in M.2, which is in line with the industry M.2 standard interface definition. It can support USB3.1, PCIe3.0, GPIO and other interfaces. It integrates eSIM internally and reserves RGMII interface. SRM825W is compatible with many types of operating systems (Android, Linux, Windows7/8/10, etc.), with rich network protocols built in. With the advantages of standard interface, simple backplane design and easier assembly, it can be widely used in CPE home gateway, HDTV, AR/VR, industrial router, set-top box, vehicle terminal. Main Advantages： ● 5G NR Sub-6GHz and mmWave，support 3GPP R15 and SA/NSA network type ● 5G NR DL Max Speed 6.78Gbps，UL Max Speed 1.45Gbps ● LTE-A support Cat.20，DL Max Speed 2Gbps，UL Max Speed 200Mbps ● Carrier Aggregation ● Compatibility of 5G NR/LTE-FDD/LTE-TDD/WCDMA Networks
