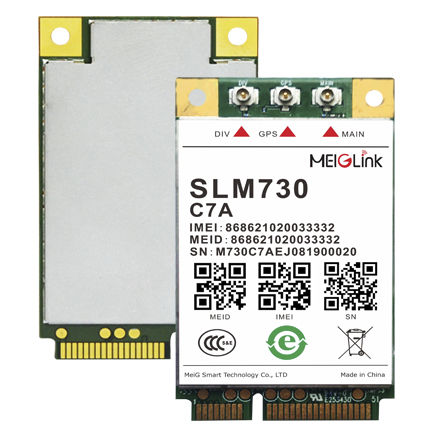

Data transmission wireless module SLM730

MeigSmart SLM730 series modules are M2M communication modules, which can cover domestic network of LTE with the download rate of 150Mbps and the upload rate of 50Mbps. They are also backwards compatible to 3G and 2G network in order to guarantee the availability of network communication in remote areas. SLM730 series modules support diversity reception and MIMO technology in order to improve communication quality and data transmission speed, which also provide the function of high sensitive global satellite navigation. SLM730 series modules support many kinds of network protocols (TCP/HTTP/FTP) and are compatible with many kinds of operation systems, which enable them applicable in many industries. Main advantages: ● Coverage of LTE FDD/ td-lte /WCDMA/ td-scdma /EDGE/GPRS/GSM/EVDO&CDMA 1x network ● Qualcomm® IZat™ Gen 8C engine, support GPS/GLONASS/BeiDou ● Support for a variety of voice coding (HR/FR/EFR/AMR/ amr-wb), support for SRLTE/CSFB/VOLTE(optional) ● Support for high speed USB2.0 interface ● Support radio frequency MIMO and receive diversity technology, improve communication quality and optimize the speed of data transmission ● Support TCP/IP built-in stack capabilities ● Support VSIM Basic Attributes: Product model: - SLM730 Module Packaging: - Mini PCIe package (52 pin) Size (mm) : - 51.0 * 30.0 * 4.5 mm Weight: - < 11.5 g Module Rate: LTE FDD (Cat 4) : - Max 150 MBPS (DL) / 50 megabits per second (UL) The td-scdma LTE (Cat) : - Max 130 MBPS (DL) / 35 megabits per second (UL) DC - HSPA + : - Max 42 Mbps (DL) / 5.76 megabits per second (UL) Td-scdma: - Max 4.2 megabits per second (DL) / 2.2 Mbps (UL) WCDMA: - Max 384 KBPS (DL) / 384 KBPS (UL)
