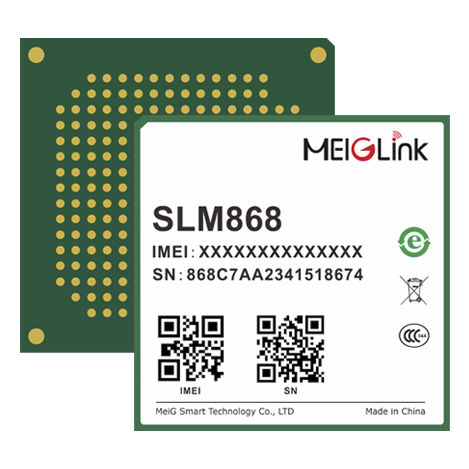

Data transmission wireless module SLM868

MeiG Smart SLM868 is an LTE-A Cat6/Cat16 high-rate module designed for M2M and Internet of Things applications.With 3GPP Rel.11 technology, the maximum downlink rate is 1Gbps (Cat16) and the maximum uplink rate is 50Mbps. The SLM868 series has four models designed for different target areas, including SLM868-C (China), SLM868-E (Europe), SLM868-A (North America) and SLM868-SA (South America), covering the global mainstream operator networks. SLM868 adopts multiple antennas at the receiving end through MIMO technology, thus reducing bit error rate, improving communication quality and optimizing data transmission speed.SLM868 has built-in multi-constellation high-precision GNSS receiver, which supports GPS/GLONASS/BEIDOU/GALILEO/QZSS and provides fast and accurate positioning service. SLM868 supports rich industry standard interfaces, facilitates peripheral expansion, supports SDIO, PCIe, SPI, multiple UART, ADC, GPIO and other interfaces, and is compatible with various types of operating systems (Android, Linux, Windows XP/7/8/10 and other operating systems), making it widely applicable to various M2M and IoT industrial routing, CPE, OTT, PDA, and other fields. Main advantages： ● Adopt LTE-A Cat16, with a maximum downlink rate of 1Gbps and a maximum uplink rate of 50Mbps. ● Support carrier aggregation ● Coverage of LTE-FDD/LTE-TDD/WCDMA/EDGE/GPRS networks ● Qualcomm® IZat ™ 8C engine, support GPS/GLONASS/Beidou/Galileo/QZSS ● Support various speech codes (HR/FR/EFR/AMR/AMR-WB) and SRLTE/CSFB/VOLTE ● Support radio frequency MIMO(Max 4*4), improve communication quality and optimize data transmission speed
