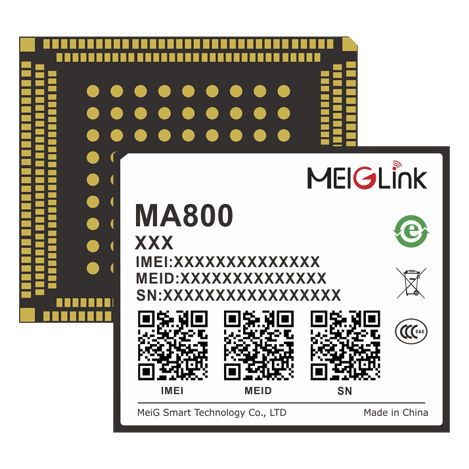

Data transmission wireless module MA800

MeiG Smart MA800 is LTE automotive grade module which is designed and manufactured according to IATF 16949:2016 quality management system. Going through high temperature, vibration and long-term harsh environment inspection, and by having good performance in ESD and EMC protection, MA800 is designed specifically for automotive industry and is targeted at IoT (Internet of Things) used in harsh environment. MA800 is compatible with Qualcomm MDM9628/MDM9X07 platform, covering three operators’ network in domestic and the main operator’s network of the world, which is also compatible with existing 3G and 2G networks to ensure the network coverage in remote areas. With 3GPP Rel.10 technology, MA800 supports LTE CAT 4 up to 150Mbps for downlink and 50Mbps for uplink data transfer. Rx diversity and MIMO technology is provided to improve communication quality and optimize data transmission rate,high-sensitivity GNSS function is also provided to support GPS/GLONASS/BeiDou/Galileo/QZSS. MA800 has strong extension capability with abundant interfaces including SDIO,RGMII,SPI,multi-channel UART,ADC,GPIO,and also support peripherals like Wi-Fi module,Ethernet port,eMMC,besides,a rich set of protocols (TCP/UDP/HTTP/FTP/SSL/HTTPS) and compatibility of multiple types of operating system extend the applicability of the module. Main advantages: ● Compliance with automotive quality management system IATF 16949:2016 ● Wide operation temperature range (-40°~+85°), good performance in ESD and EMC protection ● Cover LTE FDD/TD-LTE/WCDMA/TD-SCDMA/EDGE/GPRS/GSM/EVDO&CDMA 1x networks ● Qualcomm® IZat™ Gen 8C engine,Support GPS/GLONASS/BeiDou /Galileo/QZSS
