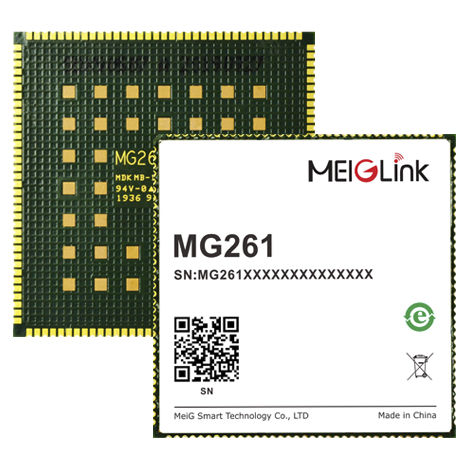

Data transmission wireless module MG261

MG261 is an AI module launched by MeiG Smart. It adopts HiSilicon chipset and embeds an AI software. As an smart module dedicated to the IoT industry, MG261 integrates a new generation of ISP, adopts the latest H.265 video compression encoder, and integrates a high-performance NNIE engine, leading the industry in its low bit rate, high quality, intelligent processing and analysis, low power consumption, etc. MG261 module has built-in DDR, EMMC with LCC packaging and provides multiple software and hardware interfaces, which greatly reduces the R&D costs of customers, and can be widely used in various industries such as vehicle and new retail. Main advantages: ● integrated neural network acceleration engine, handling performance 1Tops ● support for h. 265 codec ● support dual 1080P@30FPS camera ● built-in ISP supports WDR and supports 6-dof Support external 1080P display screen, and support HDMI output ● support hardware AES/DES and other encryption Audio input/output support ● support USB,SDIO3.0,RMII and other common interface Basic Attributes: Product model: - MG261 Module Packaging: - LCC package (140pin+LGA 40pin) Size: - 38.0 * 38.0 * 3.0 mm Weight: - < 8 g Operating system: - Linux 4.9 Video coding: H.264/265 codec maximum width 2688, maximum resolution 2688*1944, only support its own coding stream H.264/ h.265 multi-stream real-time coding (decoding) capability 2688*1536@30fps code +720*480@30fps code +360*240@30fps code 1920*1080@30fps encoding +720*480@30fps encoding +1920*1080@30fps decoding Support for 8 areas of interest (ROI) coding
