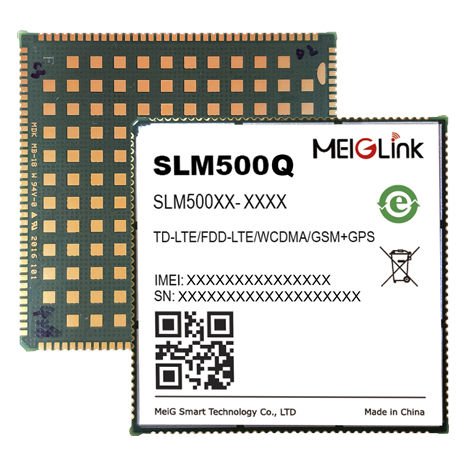

Data transmission wireless module SLM500Q

MeiG Smart SLM500Q series modules, based on Qualcomm QCM2150 platform of Snapdragon 200 series. Its CPU uses 28nm FinFET process, with a 64-bit arm and 4-core A53(4*1.3GHz) application processor. It supports decode/encode up to 1080P@30fps, H.264, HD+ screen resolution, and dual ISP cameras. SLM500Q is equipped with Android 10 operating system and a board memory of 1GB+8GB (2GB+16GB, and 3GB+32GB). It supports LTE Cat.4, with a maximum downlink rate of 150Mbps and a maximum uplink rate of 50Mbps. This broadband smart module integrates GNSS and 2.4&5G Wi-Fi, supports multi-modes of connectivity including TD-LTE/FDD-LTE/WCDMA/EVDO/TD-SCDMA/CDMA/GSM. SLM500Q series modules include：SLM500Q-C、SLM500Q-E*、SLM500Q-A*、SLM500Q-LA*、SLM500Q-J*、SLM500Q-AU*、SNM500Q. SLM500Q can provide functions such as voice, SMS, address book, 2.4G/5G Wi-Fi, BT and GNSS. It supports dual 800W 3D camera or the depth-of-field camera, which can be widely used in intelligent POS cash registers, logistics terminals, VR Camera, intelligent robots, video recorder, security, automotive equipment, intelligent information collection equipment, intelligent handheld terminals and other products. Main Advantage： ● Support LTE Cat.4，MAX DL 150Mbps ● Support multi-modes of cellular connectivity ● Support main screen display HD+（1440x720）, @60pfs ● Support Dual ISP，Dual Camera（8M+8M）13MP camera ● Integrate multi-constellation GNSS receivers, fast and accurate positioning in different environments ● Support 1080P @30fps video recording and playing General features: OS: - Android 10.0 Storage: - 8GB eMMC+1GB LPDDR3 （default）16GB eMMC+2GB LPDDR3 （optional）
