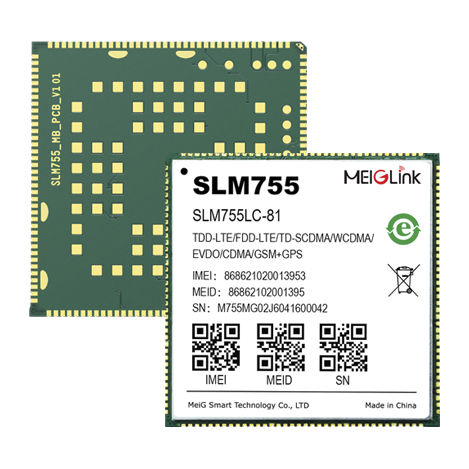

WiFi wireless module SLM755

data transmission

SLM755 is a full-standard multimode LTE smart communication module with a board memory of 8GB (compatible with 16GB). This module is applicable to TD-LTE/FDD-LTE/WCDMA/EVDO/TD-SCDMA/CDMA/GSM network systems. SLM755 can provide high-speed broadband data access as well as functions of voice, SMS, address book, WiFi, BT and GPS. It can be widely applied in, automobile devices, handy terminals and other products. SLM755 adopts Android7.1 operating system. Its supported access rate is as follows： ● TD-LTE: 117/30Mbps ● FDD-LTE: 150Mbps/50Mbps ● WCDMA can reach DC HSPA+: 42Mbps/5.76Mbps ● EVDO can reach EVDO RevA: 3.1Mbps/1.Mbps ● TD-SCDMA can reach HSPA: 4.2Mbps/2.2Mbps ● CDMA1x: 153.6kbps/153.6kbps ● GSM can reach EDGE: 236.8kbps/236.8kbps Feature - Describe Platform - Qualcomm MSM8916 CPU - Quad-core A53 (64bit) 1.2GHz GPU - Adreno506; 650MHz System Memory - A306 400MHz Operating System - Android5.1 Size - 40.5x40.5x3.0mm，Stamp hole package + bottom pad210pin Network frequency band SLM755 8916-5 - TDD-LTE: B38/39/40/41 FDD-LTE: B1/3TD-SCDMA: B34/39 WCDMA: B1/B5 EVDO: BC0 CDMA: BC0 GSM：B5/3/8
