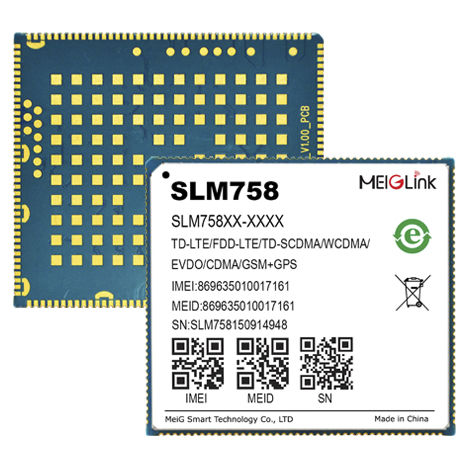

Data transmission wireless module SLM758

embedded

MeiG Smart SLM758 smart module, based on Qualcomm platform of Snapdragon600 series of MSM8953（optional with Snapdragon400 series of SDM450）, the CPU uses the advanced 14nm FinFET process for lower active power dissipation and faster peak CPU performance. It includes a 64-bit RAM Cortex A-53 octa-core application processor, 16GB/32GB memory with built-in Android 9.0 OS. SLM758 supports multi-modes of cellular connectivity which includes LTE-TDD/LTE-FDD/WCDMA/TD-SCDMA/CDMA/GSM, the module also combines high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GNSS (GPS, GLONASS and BeiDou) receiver for positioning. SLM758 also provides voice, SMS, address book, Wi-Fi, BT. It supports the 13M 3D camera or the depth of field camera, which can be widely used in VR Camera, intelligent robot, video surveillance, security, automotive equipment, intelligent platform handheld terminals and other products. Main Advantage： ● Support 2.4G& 5G Wi-Fi，support 11ac & 5G FEM ● Support Cat.4 FDD&TDD, MAX DL 150Mbps ● Support dual screen display and dual touch,Matrix:FHD: 1920*1200@60fps ● Support Dual ISP 24 MP30 ZSL,Dual ISP 13M sensor at the same time ● Support 1080P 60fps Decode and 1080P 30fps Encode General features: OS： - Android 9.0 Storage： - 16GB eMMC + 2GB LPDDR3 Operating Temp： - -25°C ~ +75°C Size： - 41.0x45.5x3.0mm Package： - LCC+LGA 272PIN Weight： - 12g Certification: - CCC/CTA/CE/GCF/FCC/PTCRB/BQB
