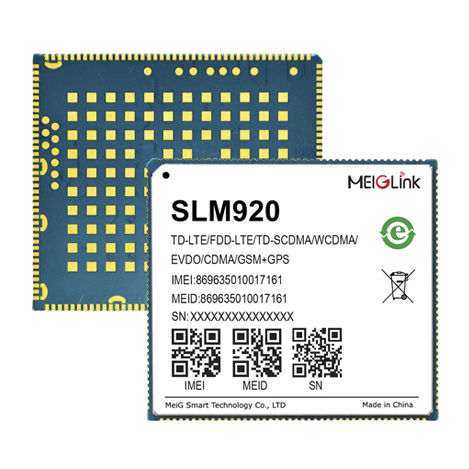

Data transmission wireless module SLM920

MeiG Smart SLM920 series modules are designed based on Qualcomm QCM6125 platform of Snapdragon 600 series. Its CPU uses 11nm FinFET process, built-in 64-bit Arm and 8-core Kryo (4*A73 2.0GHz & 4*A53 1.8GHz), supports decode/encode up to 4K 30fps, H.265, and runs on Android 10 operating system. The on-board memory size is 32GB+3GB (optional with 64GB+4GB or 128GB+6GB); it supports LTE Cat.6 and 2*20MHz carrier aggregation, with the maximum downlink rate of 300Mbps. This broadband smart module integrates GNSS and 2.4&5G Wi-Fi, supports multi-modes of connectivity including TD-LTE/FDD-LTE/WCDMA/EVDO/TD-SCDMA/CDMA/GSM. SLM920 series modules include：SLM920-C、SLM920-E、SLM920-A*、SLM920-LA*、SLM920-J*、SLM920-AU*、SNM920. SLM920 integrates rich functional interfaces, such as LCM, touch screen, camera, microphone, speaker, UART, USB, I2C, and SPI interface. It can provide functions such as voice, SMS, address book, 2.4G/5G Wi-Fi, BT and GPS. The product supports dual 1600W 3D camera or depth-of-field camera, and can be widely used in intelligent POS cash registers, logistics terminals, VR Camera, intelligent robots, automobile equipment, intelligent information collection equipment, intelligent handheld terminals and other products. Main Advantage： ● LTE Cat.6 and 2x20MHz carrier aggregation,Max DL: 300Mbps ● Support multi-modes of cellular connectivity ● Support dual-screen display and dual-touch control;Both screens support 2520*1080@60fps ● Support Dual ISP（16+16MP），4 lane cameras ● Integrate multi-constellation GNSS receivers, fast and accurate positioning in different environments ● Support 4K @30fps video playing & recording General features: OS： - Android 10.0
