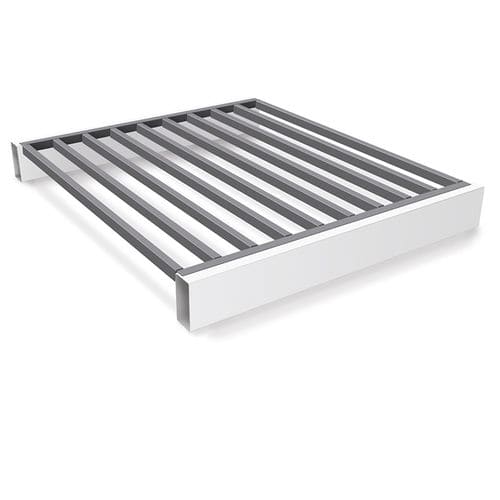

Metal grating

for storage systems

MEISER has always been at the torefront for reliability and progress. In our most recently developed product, the U-Channel grating, these two characteristics were impressively combined. MEISER has developed a grating which is capable of bearing up to 200* times its own weight. This shelf grating was specifically developed for handling cardboard boxes. This patented design makes it possible to move these boxes on the deburred U-Channels without damaging them. Grating Dimensions The length of the grating also discribes the length of the u-profile and corrosponds to the (free) span of the shelf system. The U-channel shelf gratings are available in dimensions from 700 mm up to 1700 mm. The width of the grating corrosponds to the scheduled width of the shelf system, or portion thereof. This dimension indicates the pieces of U-profiles, which depends to the responsable partition of the bars. The most shelf systems will be manufactured in two or three parts. Shelf gratigns are available with a width from 100 mm up to 1600 mm. However, the number of U-profiles is limeted to 10 profiles per grating U-Channel inlaid Standard-Version This grating was specifically developed to store cardboard boxes with loads up to 1000 kg UDL. The loose-fitting always has an upbuliding height of 20 mm. The inserted version builds up max. 2mm on the beams.
