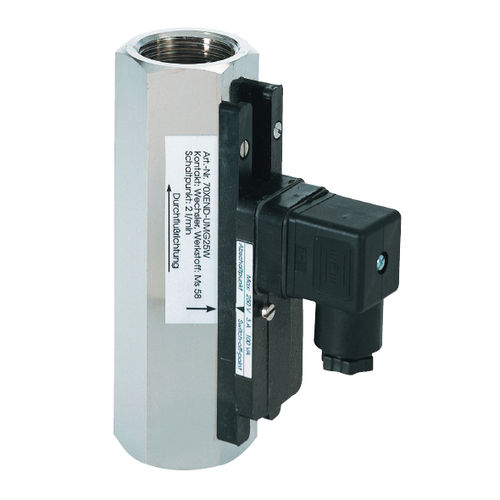

Variable-area flow meter RVM/UMvolumefor liquidsDN25 - 1"
Add to favorites
Compare this product
Characteristics
- Technology
- variable-area
- Type
- volume
- Fluid
- for liquids
- Pipe diameter
- DN25 - 1"
- Installation
- in-line
- Protection level
- ATEX
- Volumetric flow rate
Max.: 30 l/min
(7.9252 us gal/min)Min.: 0.1 l/min
(0.0264 us gal/min)- Process temperature
Max.: 160 °C
(320 °F)Min.: -20 °C
(-4 °F)- Process pressure
250 bar, 300 bar
(3,625.94 psi, 4,351.13 psi)
Description
Flow monitor for liquids
low switchpoint at high flowrate
sturdy construction
installation in any orientation
Operation:
The flow monitors type RVM/UM operate with the float measuring principle.
