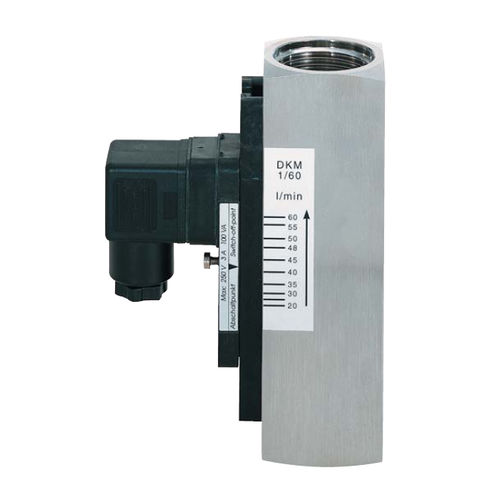

Variable-area flow meter DKM-1volumefor oilin-line
Add to favorites
Compare this product
Characteristics
- Technology
- variable-area
- Type
- volume
- Fluid
- for oil
- Installation
- in-line
- Applications
- high-pressure
- Other characteristics
- viscosity-compensated
- Volumetric flow rate
Max.: 110 l/min
(29.0589 us gal/min)Min.: 0.5 l/min
(0.1321 us gal/min)- Process temperature
Max.: 160 °C
(320 °F)Min.: -20 °C
(-4 °F)- Process pressure
250 bar, 300 bar
(3,625.94 psi, 4,351.13 psi)
Description
Flow monitor for oil
viscosity compensated
special liquids
high operating pressure
installation in any orientation
Operation:
The flow monitors type DKM-1 operate with the float measuring principle.
