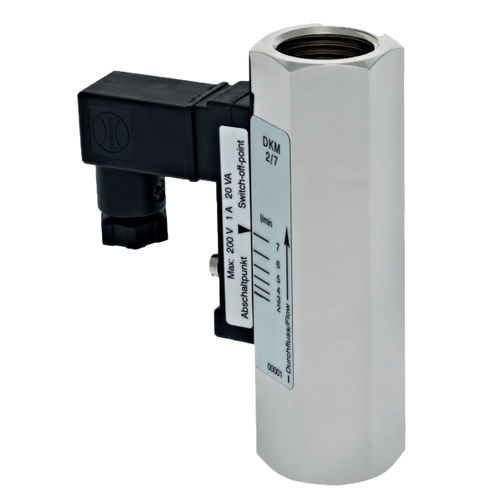

Magnetic float flow meter DKM-2volumefor oilDN15 - 1/2"
Add to favorites
Compare this product
Characteristics
- Technology
- magnetic float
- Type
- volume
- Fluid
- for oil
- Pipe diameter
- DN15 - 1/2", DN10 - 3/8", DN8 - 1/4"
- Installation
- in-line
- Protection level
- ATEX
- Applications
- high-pressure
- Other characteristics
- viscosity-compensated
- Volumetric flow rate
Min.: 0.5 l/min
(0.1321 us gal/min)Max.: 7 l/min
(1.8492 us gal/min)- Process temperature
Min.: 0 °C
(32 °F)Max.: 160 °C
(320 °F)- Process pressure
Min.: 0 bar
(0 psi)Max.: 350 bar
(5,076.32 psi)
Description
Flow monitor for oil
viscosity compensated
special liquids
high operating pressure
installation in any orientation
Operation:
The flow monitors type DKM-2 operate with the float measuring principle.
