Development kit DVK91230

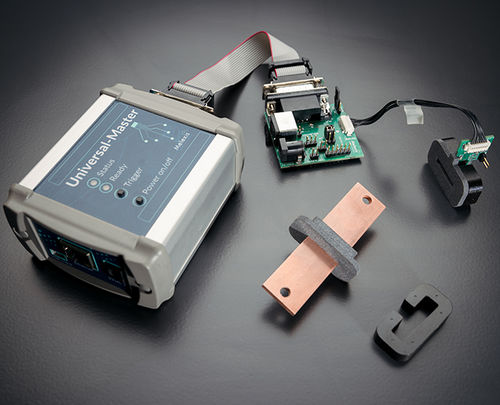

The DVK91230 provides a mother board and a sensor board to enable comprehensive performance evaluation of the MLX91230’s capabilities. Note that a Melexis Universal Master MUM (not included) is also required. The DVK91230 includes: Mother board: junction between the MUM Programmer (not included in the DVK) and the sensor board Sensor board: ready to use with a MLX91230 already soldered Connectors: between mother board and MUM programmer, between mother board and sensor board Copper busbar Ferromagnetic core Plastic holder (to fix the core, sensor board and busbar) The DVK91230 does not include: Melexis Universal Master (MUM): programmer tool and LIN master Development kit for the smart MLX91230 Features and benefits Simplify the evaluation of the MLX91230 Low level software libraries available GUI (Graphical User Interface) starter toolbox for calibration and measurement Hardware reference design available Melexis IDE (Integrated Design Environment) For embedded software Firmware example available (calibration and application)
