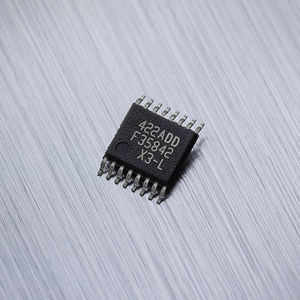

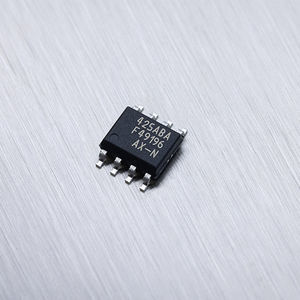

Angular position sensor MLX90316
rotarycontactlessmagnetic

Angular position sensor - MLX90316 - Melexis - rotary / contactless / magnetic
Angular position sensor - MLX90316 - Melexis - rotary / contactless / magnetic
Angular position sensor - MLX90316 - Melexis - rotary / contactless / magnetic - image - 2
Add to favorites
Compare this product


Characteristics

Type
angular, rotary
Contact / non-contact
contactless
Technology
magnetic, mechanical, PWM
Output signal
analog output, serial
Applications
industrial
Other characteristics
absolute
Ambient temperature

Min.: -40 °C
(-40 °F)

Max.: 150 °C
(302 °F)

Description

The MLX90316 is a Triaxis® rotary position sensor IC providing the angular position of a small dipole magnet rotating above the device surface (end-of-shaft magnet), targeting non-contacting rotary position sensor applications in automotive and industrial systems. Top features Absolute rotary position sensor IC Simple and robust magnetic design Triaxis® Hall technology Product description The MLX90316 is a Triaxis® rotary position sensor IC providing the angular position of a small dipole magnet rotating above the device surface (end-of-shaft magnet). Thanks to an IMC on its surface, the monolithic device senses, in a contactless fashion, the horizontal component of the applied magnetic flux density. This unique sensing principle applied to a rotary position sensor results into an impressive robustness of the angular position over the mechanical (air-gap, off-axis) tolerances. The rotation of this horizontal component is sensed over a wide range (up to 360º) and processed by the on-chip DSP to ultimately report the absolute angular position of the magnet either as a ratiometric analog output or as Pulse-Width Modulation (PWM) signal or as a 14-bit data accessible through a 3-pin SPI (serial interface) channel. The output transfer characteristic is fully programmable (e.g. offset, gain, clamping levels, linearity, thermal drift, filtering, range, ...) to match any specific requirement through end-of-line calibration. The Melexis programming unit PTC-04 communicates and calibrates the device exclusively through the connector terminals (Vdd-Vss-Out).
