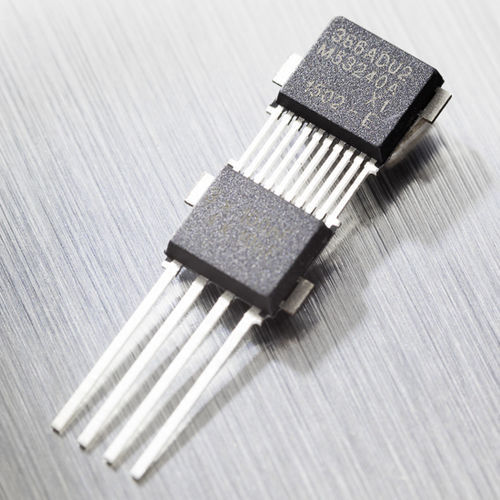

Linear position sensor MLX90366
angularrotarycontactless

Linear position sensor - MLX90366 - Melexis - angular / rotary / contactless
Linear position sensor - MLX90366 - Melexis - angular / rotary / contactless
Add to favorites
Compare this product


Characteristics

Type
linear, angular, rotary
Contact / non-contact
contactless
Technology
magnetic, mechanical
Other characteristics
absolute, rugged, redundant
Supply voltage

Max.: 24 V

Min.: 0 V

Ambient temperature

Max.: 150 °C
(302 °F)

Min.: -40 °C
(-40 °F)

Description

The MLX90366 is a monolithic sensor IC sensitive to the flux density applied orthogonally and parallel to the IC surface. Top features Absolute rotary and linear position sensor IC Triaxis® Hall technology Simple and robust magnetic design Product description The MLX90366 Triaxis® IC is based on a Dual Mold Package (DMP) which integrates the Triaxis® position sensor IC MLX90367 together with the discrete decoupling components necessary to meet the strenuous automotive ESD and EMC requirements as well as the mechanical robustness for the most challenging environments. The MLX90366 carries over all the characteristics and features of the MLX90367, such as linear and rotary position sensing capability, SAE-J2716/SENT output, and ASIL-B. Once encapsulated, this DMP can be welded or soldered directly to a rugged connector or termination and further potted or over-molded. The DMP simply makes the conventional PCB redundant while keeping intact all the features and benefits of the Triaxis® contactless sensing technology. Learn more about the Triaxis® technology. Features and benefits Absolute rotary and linear position sensor IC Triaxis® Hall technology Simple and robust magnetic design Programmable transfer characteristic (multi-points - piece-wise-linear) SENT output (according to SAE J2716-2010) 12-bit angular resolution 10-bit thermal accuracy On-board diagnostics Over-voltage protection Under-voltage detection 48-bit ID number option AEC-Q100 qualified Reliable NoPCB module integration DMP-4 RoHS compliant Output thermal offset correction Programmable with the PTC-04 and the PTC-04-DB-90316 daughterboard
