Linear position sensor MLX90367
angularrotarycontactless

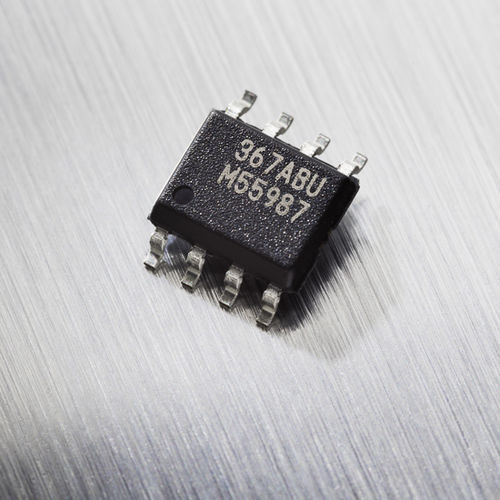

Linear position sensor - MLX90367 - Melexis - angular / rotary / contactless
Linear position sensor - MLX90367 - Melexis - angular / rotary / contactless
Linear position sensor - MLX90367 - Melexis - angular / rotary / contactless - image - 2
Add to favorites
Compare this product


Characteristics

Type
linear, angular, rotary
Contact / non-contact
contactless
Technology
magnetic, mechanical
Other characteristics
absolute
Supply voltage

Max.: 24 V

Min.: 0 V

Ambient temperature

Max.: 150 °C
(302 °F)

Min.: -40 °C
(-40 °F)

Description

The MLX90367 is a monolithic sensor IC sensitive to the flux density applied orthogonally and parallel to the IC surface, featuring SAE J2716/SENT protocol. Top features Triaxis® Hall technology On-chip signal processing for robust absolute position sensing Simple magnetic design Product description The MLX90367 is the generation II½ of Triaxis® position sensor IC featuring SAE J2716/SENT protocol. Thanks to an IMC on its surface, the monolithic device senses, in a contactless fashion, the three spatial components (i.e. Bx, By and Bz) of the applied magnetic flux density. This unique sensing principle applied to a position sensor results into an impressive robustness of the position signal over the mechanical (airgap, off-axis) tolerances. The rotation of this horizontal component is sensed over a wide range (up to 360º) and processed by the on-chip DSP to ultimately report the absolute angular position of the end-of-shaft magnet. Alternatively, through measuring individually the horizontal and vertical components, the MLX90367 is able to address linear stroke (displacement) position sensor and also absolute rotary position sensor with a through-shaft magnet. From the sensing and reporting perspectives, the MLX90367 is an extremely versatile IC for any stand-alone remote position sensor application. The output transfer characteristic is fully programmable (e.g. offset, gain, clamping levels, linearity, thermal drift, filtering, range...) to match any specific requirement through end-of-line calibration. The Melexis programming unit PTC-04 communicates and calibrates the device exclusively through the connector terminals (Vdd-Vss-Out).
