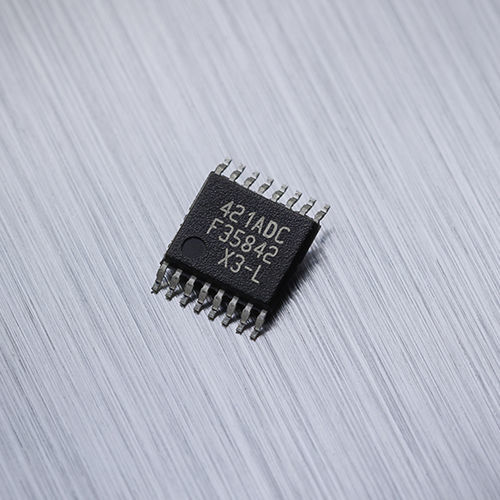

Rotary position sensor MLX90421

linearnon-contactmagnetic

The MLX90421 is a magnetic position sensor suited for demanding but cost-conscious automotive applications. It supports rotary or linear motions of the magnet, with analog or PWM output. Top features Supported output modes: analog (ratiometric) or PWM (Pulse Width Modulation) ISO 26262 ASIL-B SEooC (Safety Element out of Context) Programmable measurement range Product description The MLX90421 is a magnetic position sensor designed for use in cost-sensitive automotive applications including powertrain actuators, pedal positioning, fuel level gauges and transmission systems, though also suitable for industrial implementations. The MLX9042x devices have superior capabilities in terms of functional safety, Absolute Maximum Ratings (AMR) and electromagnetic compliance (EMC) characteristics. They also support operating temperature up to 160 °C. The MLX90421 is pin-to-pin compatible with the previous generations of Triaxis® position sensor ICs. The MLX90421 is a monolithic magnetic position sensor IC. It consists of a Triaxis® Hall magnetic front end, an analog to digital signal conditioner, a DSP for advanced signal processing and a programmable output stage driver. The MLX90421 is sensitive to the three components of the magnetic flux density applied to the ICs (i.e. Bx, By and Bz). Programming the sensor determines which axes are used to calculate a rotation or linear position. This allows the MLX90421, with the correct magnetic design, to calculate the absolute position of any moving magnet (e.g. rotary position from 0 to 360 Degrees).
