The MLX80002 is a two channel physical layer device for applications of low speed vehicle serial data network communication using the Local Interconnect Network (LIN) protocol.
Top features
LIN 2.x/SAE J2602 compliant
Two-channel independent enhanced master transceiver function

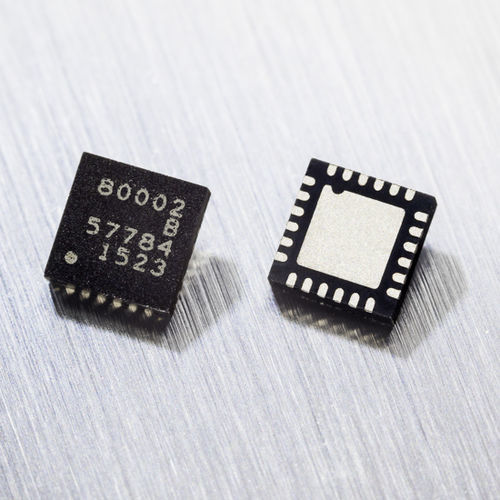

Lowest space (QFN4x4) and minimized external components
Product description
The MLX80002 is a two channel physical layer device for applications of low speed vehicle serial data network communication using the Local Interconnect Network (LIN) protocol.
The device is designed in accordance to the physical layer definition of the LIN Protocol Specification Package 2.x and the SAE J2602 standard.
Because of the very low current consumption of the MLX80002 in the recessive state it’s suitable for ECU applications with hard standby current requirements. An advanced sleep mode capability allows a shutdown of a complete master node. The included wake-up function detects incoming dominant LIN messages and enables the voltage regulator.
Features and benefits
LIN 2.x/SAE J2602 compliant
Two-channel independent enhanced master transceiver function
Lowest space (QFN4x4) and minimized external components
Quad/Dual versions with same package and foot print for cost/space optimized design
Slew rate selection and high speed flash mode
Wide operating voltage range VS = 5 to 27 V
Fully compatible to 3.3V and 5V devices
Very low standby current consumption of 10µA in sleep mode
WAKE input for local wake-up capability
Remote and local wake-up source recognition
Control output INH for external components
Integrated termination (resistor and decoupling diode) for both LIN master and slave nodes
