Handling AGV HLG120

transfertransportfor pallet

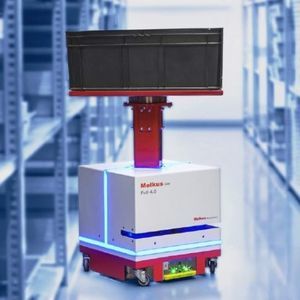

Lifting, moving, transporting and transferring load carriers – these are the tasks of the intelligent pallet AGV of the Melkus series. The Melkus HLG120 combines the latest technology with industrial-grade design. It offers high payload capacity with high lifting height and minimal space requirements, with a focus on safety. Speed: 1.5 m/s Navigation: SLAM Lidar Navigation (+/- 1 cm) Dimensions: 1,700 mm x 800 mm x 1,721 mm (L x B x H) without pillar Signal pillar: standard height 2,236 mm Weight: 400 kg Lifting height: 800 mm Turning circle diameter: 1,750 mm or 1,870 mm with Euro pallet Drive technology: Omnidirectional Fork height: 87 mm Fork length: 1,200 mm Flexible • Multi-Differential Steering” enables use in the tightest space • Free range of motion in all directions • SLAM navigation • Operation and diagnostics also with smart devices • Easy integration into existing systems (REST API, MQTT, VDA 5050) Intelligent • High personnel safety via four 275° laser scanners • Compact automation solution from SIGMATEK • WLAN communication with the guidance system • Gentle material transport and low floor wear via smart drive technology • Flexible task creation Efficient • Reduced path via transverse drive capability • Free standing lifting forks facilitate load handling • LiFePo4 high performance power-packs with battery capacity of 2x 1.8 kWh • Always ready for use via innovative wireless charging technology • No wear of the charging contacts • Energy efficiency via low net weight Application areas • Point-to-point transport • Transport tasks in limited space conditions • Material and workpiece transport in the production area
