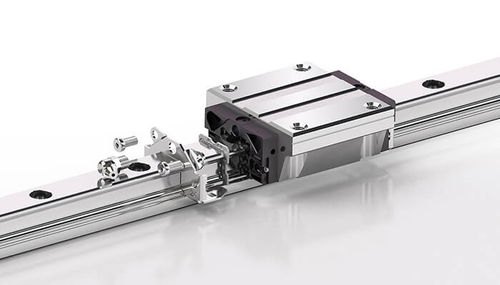

Linear guide with ball bearing

wideplasticsteel

CPC recirculating ball bearing slides offer uncommon technical characteristics, the result of product engineering that offers an innovative system. The very wide range, from size 15 to size 55 with long and low series trolleys, allows to comply with international application standards. The characteristic of the “O” profile of the rail allows a better hold of the loads compared to the rails with “X” profile, especially in the application with lateral cantilever loads. The high technological content, with the optimized contact point of the balls, the integrated internal lubrication (standard) and the front steel plates (standard) to guarantee the plastic heads, allow to reach speeds up to 10m/sec with acceleration of 500 m/sec². In addition, the double lip front seals, the internal and external longitudinal seals (upper and lower) with the possibility of adding as an option the front seals in NBR allow the CPC recirculating ball bearing guides to maximize the performance of the machine even in critical applications, with heavy loads, high speeds and in conditions of extreme dirt. Technical Features O-rail profile, with four 45° ball contact points Optimized gothic arc ball contact point Oversized spheres Accuracy grade: N-H-P-SP-UP Reagent arm The increased compared to Lx for X-profile guidance High torsional stiffness High load capacity Integrated lubrication pad inside the carriage Lubrication nozzles in all directions: frontal-lateral – from above Low friction double lip front seals (S) Reinforced double lip front seals (B) Steel sheet on the heads to protect plastic heads Upper and lower internal longitudinal seals (bottom and top)
