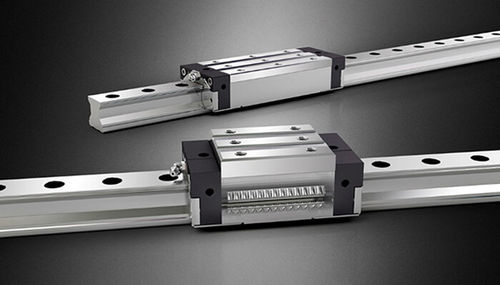

Roller linear guide

compactprecisionplastic

The CPC recirculating roller guides offer uncommon technical characteristics, the result of product engineering aimed at offering an innovative system, and have a range from size 35 to size 45 with long and ultra-long series trolleys, low and compact, ensuring perfect interchangeability with existing systems on the market. The extremely compact profile allows applications in small spaces, without compromising load capacity, rigidity and robustness. The steel reinforcement plates on the frontal seals allow to avoid breaking of the plastic heads in heavy conditions such as high speed or high loads. All models are equipped with lower protection seals (lower side of the carriage in contact with the guide) inside (on the head of the guide), called TOTAL PROTECTION, this also allows a better retention of the lubricant inside the carriage, so as to ensure a longer lubrication interval reducing maintenance time and costs. MXL series carriages (ultra-long range) are available which allow a considerable load capacity, high rigidity and a degree of precision suitable for particularly heavy applications such as those of machine tools. HRR High profile type – ARR low profile type – LRR Extra low profile type Suitable for conditions where low inertia force and low external torque are required. This system has a low height and low centre of gravity to provide a more compact product. The ARR, HRR and LRR trolleys are mounted on the same rail for similar load capacity and service life.
