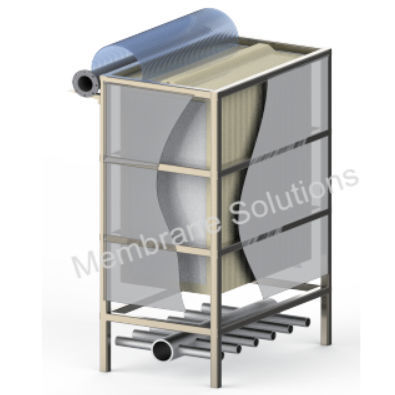

Membrane bioreactor MSMBR-S series

for wastewater treatmentmodularsingle-reaction

Membrane Solutions manufactures our own PTFE flat sheet membrane material. We use our high-quality PTFE material to create our membrane elements which are then installed into our modules for use in MBR systems and packages worldwide. In typical MBR processes, the assembled MBR systems or units are immersed directly into the biological tank or side stream tank. These configurations eliminate the need for secondary clarification and/or Tertiary filters normally required on a conventional activated sludge wastewater treatment plant. The higher permeate (effluent) water quality allows for all possible discharge or reuse options in the Industrial, Municipal and Developer water sectors. Compared to conventional activated sludge water treatment processes, flat sheet MBR systems require fewer unit processes, and operate with a much higher MLSS, allowing for increased performance with an overall footprint ¼ to 1/3 the size required by Conventional Activated Sludge Treatment plants. This overall size difference gives the MBR a huge savings due to the use of significantly less land which for a developer allows for the use of this land for their commercial or residential units. The cost of related civil work is also less and existing plants can benefit with retrofit allowing for greater flows without adding new tanks or requiring more land. Simple operation and stable process less susceptible to upset High-performance PTFE flat sheet type membrane Air Scour Diffusers are built into the bottom of the membrane module Membrane modules are easily moved and installed Modular design Minimized Civil work on site
