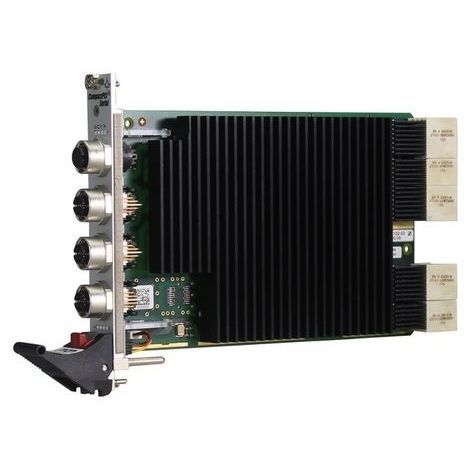

Managed ethernet switch G102

12 ports24 portsgigabit Ethernet

A Flexible Switch in a Common Modular Format The G102 is a fully managed 3U flexible multiport Gigabit Switch, with a 29 GBit/s switch matrix, implemented as a CompactPCI Serial board. It occupies one system slot or one peripheral slot using a 4 HP front panel with three Gigabit Ethernet ports on M12 X-coded connectors on the front panel. A good alternative for a version with M12 A-coded connectors is the G101. The intelligent backplane concept for duagon switches allows high flexibility in network applications and management. High Speed, High Efficiency and Extensive Protocols The G102 guarantees high speed, high efficiency and an extensive firmware supporting various protocols like security, time synchronicity, stability, as well as for temperature needs. The switch supports EEE (Energy Efficient Ethernet) and IEEE1588v2 as a standard on all ports. Various Connection Possibilities due to Various Port Options The G102 features three Ethernet ports on the front. Alternatively these are available on the rear, where a total of 24 ports is possible. These include 12 ports with integrated 10/100/1000 Mbit/s copper PHYs. For the configuration of additional ports controlled via the backplane duagon offers a number of different line cards. Increased Reliability Through Built-In Test Mechanisms The switch is fault tolerant and restores itself on its own: If a link is temporarily unavailable, frames can be sent via backup/redundant links (spanning tree protocol/link aggregation) and no data loss occurs. Its built-in test mechanisms make the G102 an even more reliable component in the communication system. Rugged and Compliant to Railway Standards
