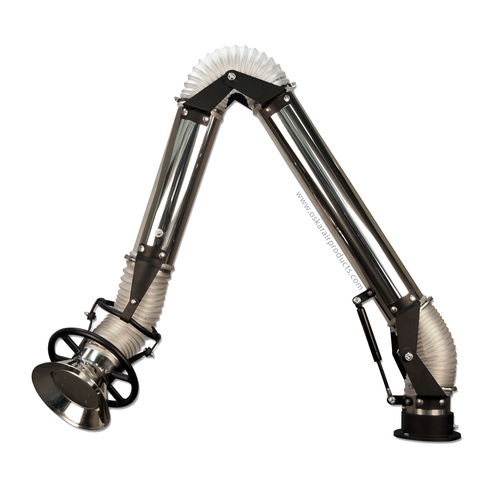

Fixed extraction arm Oskar 100

rigidfor chemicalsdust

stainless fume extraction arm for medium size applications Oskar 100 self-supporting stainless steel fume extraction arm is designed for source air pollution capture at medium size airflow demanding applications. Oskar stainless 100 work in environments where equipment is frequently washed (food, pharmaceutical), where needs to be antistatic or resistant to chemicals. Special requirement can be satisfied with combination of different elastic hoses, grounding option and outside elements materials. Oskar 100 is free from any internal mechanisms. There is nothing inside but the stainless steel air flow damper. All Oskar 100 extraction arm adjustments are accessible on the outside which allows any adjustments to be done without touching the polluted air stream or stopping the air flow operation. Smooth tube and nothing in the duct means lowest pressure drop and noise level as well as easy maintenance and long operational life time. Typical application local fume capture where production equipment needs frequent cleaning chemically aggressive, flammable or high temperature gaseous mixtures standard temperature resistance up to  230°C depending on the type of elastic hose recommended airflow range 350÷500 m3/h Standard construction arm interior stainless including bolts, nuts and airflow damper all adjustments on the outside stainless steel capture hood with air diverter and grab handle all around the hood aluminium hood joints (painted black) middle and swivel steel joints (painted black) aluminium-stainless mounting swivel smooth stainless steel tubes standard stainless steel built-in damper black PVC flexible hoses (temperature resistance up to 80°C)
