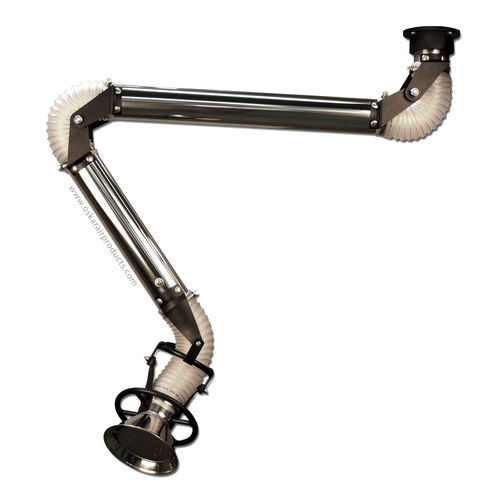

Fixed extraction arm OSKAR SS075

rigidfor chemicalsfor smoke

stainless steel fume extraction arm ideal for small size workspace Oskar 75 self-supporting stainless fume extraction arm ais designed to suit many types of dust, fume and smoke applications. Oskar 75 extraction arm construction means all adjustments and supports on the outside. Oskar fume arm duct is free from any internal mechanisms (except for air flow damper). Oskar 75 arm is easy to position and simple to maintain. Smooth metal tubes and outside joint construction provide lowest pressure drop, low noise level as well as remarkably long operational life time. There is no need to stop exhaust system or touch polluted air stream to adjust the arm. Wide choice of different flexible hoses and arm construction elements options allow to customize Oskar stainless arm to work with many air pollution applications (antistatic, ATEX, chemical, high temperature, clean rooms, food, pharmaceutical and more). Typical application local fume capture where production equipment is frequently washed chemically aggressive, flammable or high temperature gaseous mixtures temperature resistance up to 230°C depending on the type of elastic hose recommended airflow range 200÷350 m3/h Standard construction arm interior stainless including bolts, nuts and airflow damper all adjustments on the outside stainless steel capture hood with air diverter and grab handle all around the hood aluminium hood joints (painted black) middle and swivel steel joints (painted black), stainless steel on separate request aluminium-stainless mounting swivel smooth stainless steel tubes standard stainless steel built-in damper black PVC flexible hoses (temperature resistance up to 80°C) stainless steel grade 304
