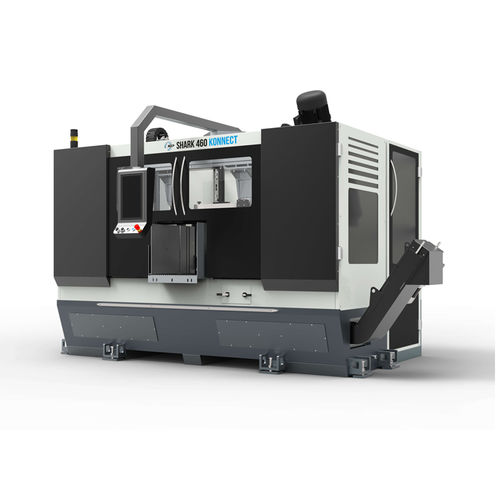

Band saw SHARK 460 KONNECT

horizontalfor metalsfor profiles

SHARK 460 KONNECT, dual-column electromechanical automatic band sawing machine for 0° cuts of structural, stainless and alloy steels, solids and profiles. In addition to the automatic cutting cycle, it can also operate in semi-automatic mode. ABSOLUTE EFFICIENCY >"Operator-free" system: by means of the auto-positioning of the saw head and vices, once loaded and positioned the material in a designated area, the operator has only to start the cycle, thus dramatically reducing setting times. > INDUSTRY 4.0 READY > The possibility of access to the know-how of the after sale service and demanding a remote service directly from the main control of the sawing machine drastically reduces downtimes of the sawing machine and service costs. > Adaptative saw head down feed rate: self-regulation in real-time of head down feed rate according to the type of material or blade wear through a servo motor on ball bearings screw drive, by adjusting it in real-time. MAXIMUM FLEXIBILITY > Bar feeder with single stroke 600 mm 23" (repeatable to cut to any length): the heavy-duty cast-iron portal structure, the stepper motor, the screw assembled on preloaded opposing taper bearings and the ball bearings grant an accurate and reliable positioning. > The chip collector can be assembled to the right or the left of the sawing machine. SAFETY GUARANTEED > "Saw in the box" style to grant the highest operator's safety, noise reduction, containment of the space occupied. > Preventive maintenance, which is based on real working time of the sawing machine and its components, promptly informs about necessary maintenance, thus allowing to minimize passive working times.
