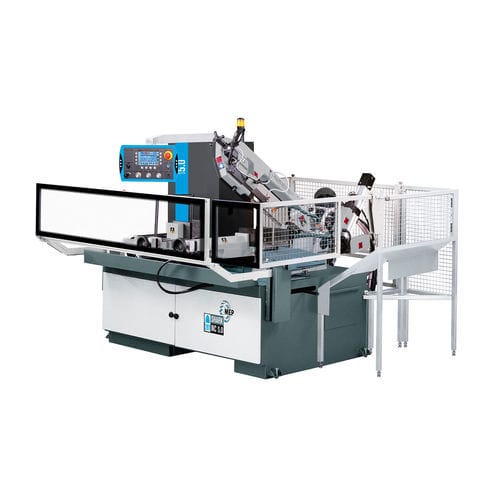

Band saw SHARK 281 NC 5.0

miterfor metalsfor profiles

Shark 281 NC 5.0, electrohydraulic automatic band sawing machine which can operate also in semi-automatic, semi-automatic/dynamic and manual mode to cut from 0° to +60°. CNC machine with a new controller : MEP 50 with Windows “CE” based. This new PLC has been specifically designed by MEP for the automation of its range of products. A FEW FEATURES: - 7” touch screen display operator interface and push buttons for all functions of the sawing machine. It is simple and intuitive , it guarantees a reliable use and it controls all cutting parameters in real time. - Console with all centralized controls, installed on an articulated arm to follow the operator in every operating position for the controls and the EMERGENCY. - Electronic inverter for the continuous adjustment of the band speed from 15 to 100 m/min. - Latest generation hydraulic control unit, with high efficiency and low energy consumption. - Bar feeder with recirculating balls screw/nut and stepper motor (feed in length in one stroke 600 mm, that can be repeated in order to cut any length). - Cutting head and feeding vice positioning with joystick. - Automatic acquisition of the actual starting point of the cut. - Electronic transducer to visualize band tensioning oil. - Wire chip brush for band cleaning. - Bi-metal band for solids and sections. - Service keys and instructions manual for maintenance and spare parts list.
