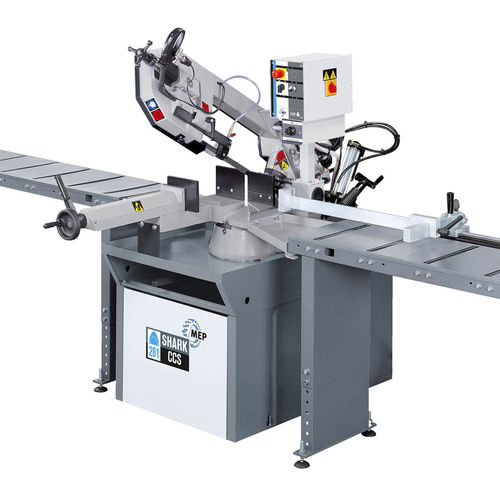

Band saw SHARK 281 CCS
miterhorizontalfor metals

Band saw - SHARK 281 CCS - MEP - miter / horizontal / for metals
Band saw - SHARK 281 CCS - MEP - miter / horizontal / for metals
Band saw - SHARK 281 CCS - MEP - miter / horizontal / for metals - image - 2
Band saw - SHARK 281 CCS - MEP - miter / horizontal / for metals - image - 3
Band saw - SHARK 281 CCS - MEP - miter / horizontal / for metals - image - 4
Band saw - SHARK 281 CCS - MEP - miter / horizontal / for metals - image - 5
Band saw - SHARK 281 CCS - MEP - miter / horizontal / for metals - image - 6
Add to favorites
Compare this product


Characteristics

Technology
band, miter
Orientation
horizontal
Treated material
for metals
Applications
for profiles, for pipe, for bars
Operational mode
manual actuation
Other characteristics
with cooling system, with motorized head, compact, CE, single-head, traveling-head, single-blade, swivel, machining, multipurpose
Round piece diameter

120 mm, 190 mm, 250 mm
(5 in, 7 in, 10 in)

Description

SHARK 281 CCS (Cut Control System) manual band sawing machine to cut from 0° up to +60°. Other than the manual pull down cutting mode can make single cuts without operator, using the head weight controlled by a hydraulic brake: after having positioned the material and closed the vice, operator start the cycle, saw head comes down by gravity and controlled through an hydraulic circuit, saw head is manually lifted and locked by the operator at whatever position by an hydraulic valve. In the version with pneumatic vice (MA) the vice is opened/closed by the operator trough a valve (optional with pedal control). A FEW FEATURES: - Electric panel (wiring totally identifiable, stand-by, loose-key safety switch, main switch, pole change switch, emergency stop, motor magneto-thermal overload, minimum tension coil, protection against missing phase, low tension safety device (LTSD 24 V)). - IP55 control handle. - Vice with fast clamping device. - Hydraulic transducer to visualize band tensioning. - Electric pump for band lubrication and cooling. - Wire chip brush for band cleaning. - Double head return spring. - Adjustable rod to measure stop to make cuts of the same length with millimetred steel rod. - Stock support arm with roller predisposed to mount loading table. - Bi-metal band for solids and sections. - Service keys and instructions manual for maintenance and spare parts list.

VIDEO
