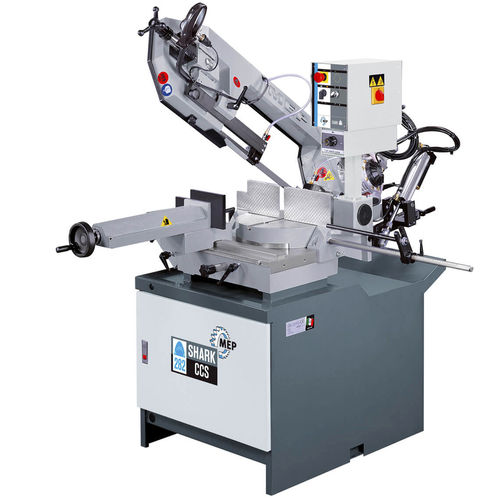

Band saw SHARK 282 CCS

miterhorizontalfor metals

SHARK 282 CCS (Cut Control System) manual band sawing machine to cut from -45° up to +60°. Other than the manual pull down cutting mode can make single cuts without operator, using the head weight controlled by a hydraulic brake: after having positioned the material and closed the vice, operator start the cycle, saw head comes down by gravity and controlled trough an hydraulic circuit, saw head is manually lifted and locked by the operator at whatever position by an hydraulic valve. In the version with pneumatic vice (MA) the vice is opened/closed by the operator trough a valve (optional with pedal control). FEATURES: - Hydraulic transducer to visualize band saw blade tensioning. - Wire chip brush for band saw blade cleaning. - Double head return spring. - Structure in grey cast iron g25, reducing drastically vibrations, grant a better stability and longer blade life. - Manual sliding vice sideways when machine mitre left or right. Fast material approach device. - Wide working surface with rotating table installed on a roller bearing, dia. 265 mm, preloaded with thrust bearing. - Adjustable precision stops for cuts at -45°,0°, +45° and +60°. - Steel base with removable coolant tray. - Electric pump for band lubrication and cooling. - Machine arranged for handling withforklift. - Adjustable measuring stop device to make cuts of the same length displayed on a millimeter scale. - Stock support arm with roller predisposed to mount loading table. - Bi-metal band saw blade for solids and profles. - Service keys and instructions manual for maintenance and spare parts list.
