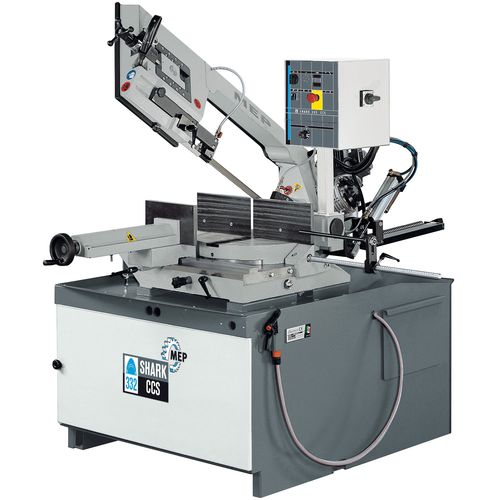

Band saw SHARK 332-1 CCS

miterhorizontalfor metals

SHARK 332-1 CCS, manual band sawing machine to cut from 60° left to 45° right. This model is available in the manual version or with the Cut Control System (CCS). – Functioning of the CCS cycle: after positioning the bar and closing the vice, the cutting phase is started, using the weight of the saw head controlled by a hydraulic braking circuit to adjust the feeding speed; after the cut, the saw head is manually lifted till the position needed for the bar to be fed. In the Shark 332-1 CCS MA model (pneumatic vice) vice opens/closes by means of a footpedal. A FEW FEATURES: – Electric system (wiring totally identifiable, stand-by, main lockable disconnect switch, pole change switch, emergency stop, motor magneto-thermal overload, minimum tension coil, protection against missing phase, low tension safety device 24 V).- Band tensioning with visualization on LCD by electronic transducer. – Manual clamping system by means of vice screw with fast-positioning system. – Coolant tank inside the steel base and drawer to collect chips which can be replaced with a motorized chip evacuator (see optionals). – Electric pump for band lubrication and cooling. – Wire chip brush for band cleaning. – Adjustable rod to measure stop to make cuts of the same length with millimetred steel rod. – Machine arranged for handling with movement equipment. – Bi-metal band for solids and sections. – Service keys and instructions manual for maintenance and spare parts list.
