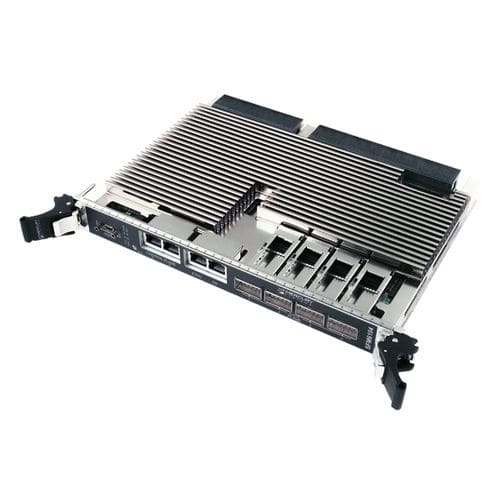

Managed Ethernet switch card EnsembleSeries™ SFM6104

4 portsgigabit Ethernetembedded

Providing comprehensive layer-2 switching and system management for up to 18 OpenVPX payload slots, the EnsembleSeries™ SFM6104 6U OpenVPX network switch board features 40 Gigabit Ethernet or InfiniBand® with Mellanox® 6th generation SwitchX-2 VPI and system management. This wideband switch is available with MOTS+ technology for extreme environmental protection and SOSA-aligned profiles for maximum interoperability and technology reuse. BUILT FOR TODAY, READY FOR TOMORROW By combining our OpenVPX multiprocessing and SBC modules with a complementary portfolio of storage, I/O, networking, GPUs, and software, we create customizable, rugged embedded subsystems that securely operate at the tactical edge. FEATURES and RESOURCES 6U OpenVPX, 1.0" slot pitch Mellanox® 6th gen SwitchX 2 VPI ASIC 40 GbE or InfiniBand high bandwidth switching 40GBASE-KR4 and 10GBASE-KX4 FDR-10, QDR, DDR and SDR Up to 18 payloads 8x front I/O Ethernet ports Single point OpenVPX chassis management MOTS+ extreme environmental protection SOSA aligned and VITA 65 compliant See software/firmware/tool suites
