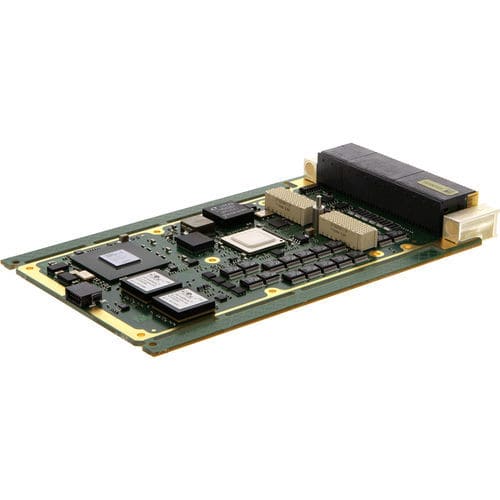

PCIe interface board AVIO-2353

OpenVPXXMCRS-232

The AVIO-2353 with BuiltSAFE™ technology is a safety-certifiable 3U OpenVPX™ interface board featuring a rich set of I/O optimized for avionic mission computers. Driven through the VPX PCIe® bus and featuring MIL-STD-1553, ARINC-429, RS232/422/485 and GPIOs, the AVIO-2353 provides the standard interfaces used to communicate with avionic electronic sensors and other subsystems. Use our FlexIO technology to customize the AVIO-2353 pinout to the specific needs of your system. Lower Malfunction Risk and Save Resources Mercury’s proven 3U avionics modules accelerate safety-critical applications like AI machine vision and augmented reality, expedite the certification process, save aircraft resources and speed subsystem time to market. Key Features Designed to DO-254/178C up to DAL-A certification Comprehensive I/O optimized for C4ISR avionic mission computing FlexIO™ technology for I/O customization XMC site Safety-optimized board management Safety certification services and support Specifications Compliance 3U OpenVPX (VITA 65)/VPX REDI (VITA 48) XMC 2.0 (VITA 61), XMC PCIe (VITA 42.3) Certifiable up to DAL-C (DO-178C/DO-254) Peripheral slot profile SLT3-PER-1U-14.3.3 Default I/O Configuration 2 dual redundant MIL-STD-1553 channel controllers/terminals (BC, RT and MT) 16 receiving and 8 transmitting ARINC-429 channels for high and low speed 10 configurable RS232/RS422/RS485 serial channels 5 LVTTL compatible 5V tolerant GPIOs
