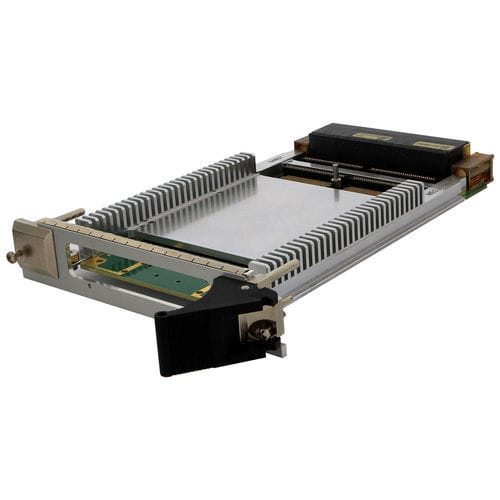

PMC VME 3U carrier board CB3P-6231

The CB3P-6231 is a 3U OpenVPX™ PCIe® switch PMC/XMC carrier board (VITA 46.9) for use with Mercury’s ROCK-2 subsystem. The CB3P-6231 carrier offers PCIe Gen1/Gen2/Gen3 lane switching capability between PMC or XMC connectors and the backplane. Designed with BuiltSAFE™ technologies, the CB3P-6231 is available in commercial air-cooled and rugged conduction-cooled configurations to meet lab to field applications requirements. Lower Malfunction Risk and Save Resources Mercury’s proven 3U avionics modules accelerate safety-critical applications like AI machine vision and augmented reality, expedite the certification process, save aircraft resources and speed subsystem time to market. Key Features 1x XMC site and 1x PMC site 1x PCIe switch, 32-lanes Configurable PCIe upstream port Commercial air-cooled and rugged conduction-cooled packaging Rugged, 7W power consumption DO-254 and DO-178 artifacts Safety certification services and support Specifications Input/Output Access to XMC-J6 I/O to VPX-P2 complaint with 46.9 P2w1-X24s+X8d+X12d Access to all I PMC-J4 I/O to VPX-P2 compliant with VITA 46.9 P2w1-P64s Switch/Bridges 1x PCIe Gen1/Gen2/Gen3 switch, 32-lanes 1x PCIe x4 to PCI/PCI-X bridge High-Speed Links/Connections 4x PCIe x4 on OpenVPX connector (B2) 1x PCIx4 on XMC-J5 1x PCIe x4 on PCIe to PCI bridge (for PMC) Sites (1) 1x XMC site 1x PMC site
