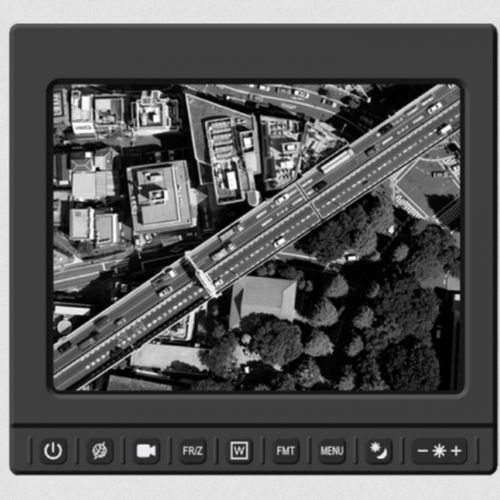

LCD display AVM4066

color640 x 480control

When space or power are at a premium, look no further than the AVM4066 for your standard definition video needs. Offering three video inputs and one video output, as well as VGA, a full-color, sunlight-readable 4:3 aspect ratio LCD, and optional NVIS compatibility in a compact 6.5″ diagonal design, this display is ideal for the playback of crisp video, maps, or computer graphics in cramped quarters. A scant 9 watts of power consumption makes this display an economical addition to an integration requiring power-hungry processors or mission computers. The 6-button lighted bezel offers simple one-touch control of video sources, computer graphics, and system menus. The AVM4066 has supported military, law enforcement, and paramilitary operations for more than a decade. End users and integrators trust the display’s solid engineering, which provides robust structural reliability in a minimal footprint. Features SCREEN MODES Full screen mode displays only one input signal. Picture-in-picture (PIP) mode displays two input signals simultaneously, one in a large format and one in a smaller window, whose position is configurable. Picture-by-picture (PBP), or side-by-side mode, displays two input signals next to each other as equally sized images whose aspect ratios are maintained. Excess screen space appears as black bars. Split screen (SS) mode displays two input signals simultaneously as equally sized images that are stretched/cropped to fit each window. In each mode, aspect ratios can be maintained in letterbox format, or set to stretch and fit, or be cropped in the viewing space.
