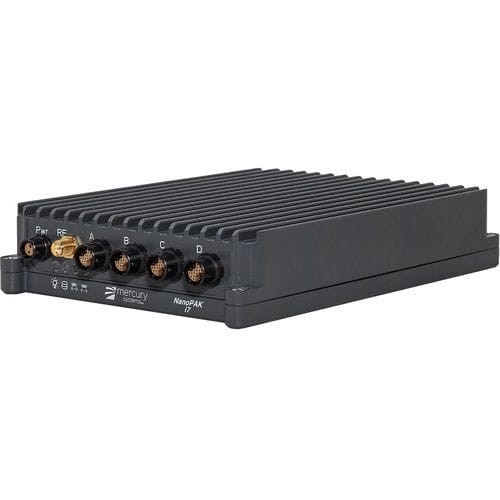

Embedded computer Nanopak i7

mobiledual-core6th generation Intel® Core™

The Nanopak i7 packs an embedded Intel® 6th generation Core™ i7 processor, up to 32GB DDR4 memory and 1TB FLASH storage in a small, lightweight, rugged form factor. Engineered to address the performance and compatibility challenges of unmanned vehicle, ground vehicle, man-wearable and shipboard applications, the Nanopak i7 provides multiple I/O configurations in an environmentally resilient, noiseless chassis. Broad Functionality The Nanopak i7 supports a myriad of field applications including real time control, data recording, small storage, virtualization and communication systems and mobile robotics. Customizable I/O with multiple networking, storage and interface options including two GbE, Wi-Fi, VGA, USB 3.0, USB 2.0, GPIO, serial, UART or HD audio allow users maximum configuration flexibility. Highlights 4 Threads Specialized I/O via optional internal mini PCIe M.2 flash support up to 1TB 9 – 36V DC power Quiet and reliable hardened-aluminum conduction cooled chassis -40° to 50° C operating temperature range IP67 sealed water-resistance MIL-STD-461F (ground mobile) Specifications Up to 32GB DDR4-2133 memory, 64-bit CPU Architecture and Memory CPU clock: 2.6GHz (up to 3.4 GHz in turbo mode) Cache memory: 4 MB, SmartCache Number of cores: 2 cores, 4 threads Instruction set: 64-bit, AVX 2.0, SSE 4.1/2.3 CPU power (TDP): 7.5W (TDP-down), 15W (TDP-normal), 25W (TDP-up)
