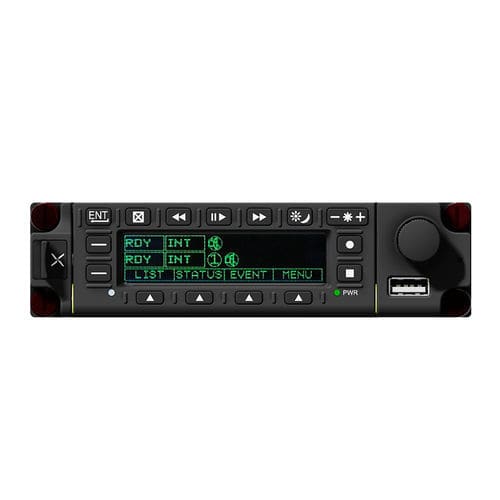

Video recorder AVR8414

eventtimeDVR

The AVR8414 Video Recorder was engineered precisely for integrators and operators who need the capability of recording multiple HD and SD sources at the same time. This model allows recording of up to five simultaneous channels in the broad range of video, audio, and data signals integrated in advanced air, land, and sea platforms. User friendly features available with the AVR8414 include event marking, KLV data, image snapshots, remote operation, jog-playback, and playback-while-record. It offers support for up to 1080p60 recording and streaming, as well as standard definition NTSC or PAL. This highly capable system is remarkably easy to use, with features such as one-touch recording, and simple icon-driven buttons. The AVR8414 can be controlled via the front panel of the DVR or via an on-screen display. The high-resolution front panel is an NVIS-compatible graphical display that provides a wide range of status information. Features REACHBACK The AVR8414 enables comprehensive flexibility to mission systems operators and systems integrators. Novel features include Reachback which allows an operator to go back in time – up to three minutes – to begin a recording, so critical events are never missed. (Activation of this feature is simple. Configure the DVR to boot in it’s Reachback Armed (RBKA) mode. The video record will then store the specified duration of video in a memory buffer till an operator presses the record button or triggers recording from a remote message/signal.) Mission capability can then be expanded with use of Mission Replace Software (AMRS).
