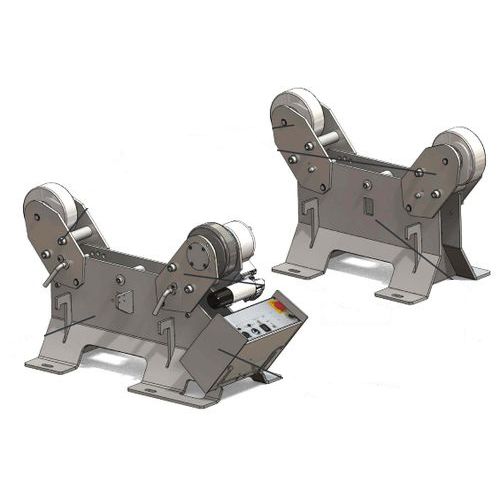

Welding rotator R1003
Add to favorites
Compare this product
Description
The roller trestle unit type R1003/1 can be used to rotate components with a Dia range from 50 to 2000mm, and
support a weight of up to 1000 kg.
The roller arms pivot on the main trestle frame, and can be adjusted in steps of 20° into three positions and
fixed using the bolt pins.
The RPM is adjustable (stepless) and the drive is through a tacho gen controlled DC motor with worm drive
gearbox.
The RPM governor and motor are electrically isolated from the mains over a transformer. Supply voltage is 42
volt.
The controller is mounted on the drive trestle with free view and access of all user functions.
